The difference between standard aluminum profiles and non-standard one
July 23,2021
We often see the terminology of standard aluminum profiles. What are their definitions of standards, and what is the difference between standard and non-standard?
Definition
Not within the scope of the national standard is called non-standard, and the standard specification is within the scope of the national standard.
View standard aluminum profile with different size
15x30 standard aluminum profile
15x30's weight: 0.70kg/m
50x100 standard aluminum profile
50x100's weight:6.2kg/m
80x40E standard aluminum profile
80x40E's weight:2.55kg/m
Their natural Maximum usable length is 6000mm with T- profile shape.
The current implementation standards for aluminum alloy profiles in China
GB 5237.1~5-2008, GB 5237.6-2004
Those requirements are actually carried out for building and construction aluminum alloy accounts, that is, as long as they are actually aluminum alloy accounts made use of in the building market, their products have to be actually made as well as item quality controlled according to the mandatory requirements of GIGABYTE 5237.1 ~ 5-2008 as well as GB 5237.6-2004.
GB/T 6892-2006 "General industrial aluminum and aluminum alloy extruded profiles"
Industrial light weight aluminum complex accounts pertain to various other light weight aluminum extruded profiles besides building doors and windows, window curtain walls and light weight aluminum profiles for interior as well as outside decoration. Except for private items that execute their special standards, many of the application criteria are actually GB/T 6892-2006 "General Use Industrial aluminum and also light weight aluminum composite squeezed out profile pages", products are mainly made use of in aerospace, transit, rail cars, electronic home appliances, sporting activities equipment, radiators, decoration, electricity electricity, petrochemicals, equipment manufacturing as well as various other industrial fields.
GB/T 26014-2010 "Aluminum alloy decorative profiles for non-building use"
Non-construction light weight aluminum metal decorative profile pages describe light weight aluminum alloy hot-extruded profile pages for decoration whose main purpose is to boost graphic effects. If there are unique demands for the perspective discrepancy of the aesthetic profile page, it ought to be actually signified in the arrangement. If there is actually no exclusive criteria, it should follow the standard needs in GB/T 14846-2008 "Dimensional deviation of light weight aluminum and aluminum metal kicked out profiles". Products are actually mostly utilized in vehicle interior and exterior decor, property appliance add-ons, kitchen area appliances, digital appliances, interior decoration, medical tools, machinery, workplace locations as well as other fields.
GB/T 14846-2008 "Dimensional deviation of aluminum and aluminum alloy extruded profiles"
Another specification for industrial light weight aluminum metal accounts implements GB/T 14846-2008 "Dimensional deviation of light weight aluminum and aluminum composite thrust profile pages". However, this criterion is only for the extrusion measurements of industrial aluminum accounts, and simply those with needs for the size may be made according to this criterion. All various other criteria reside in harmony along with the GB/T 6892-2006 standard.
Advanced foreign standards
Advanced overseas requirements consist of: EU EN12020-2 "6060 as well as 6063 aluminum and aluminum blend accuracy profiles Part 2: Dimensions and also form tolerances", EN755-2 "light weight aluminum and light weight aluminum metal rods, pipes, and shapes-mechanical properties", the United States ANSI H35.2 "American Aluminum Material Size Deviation Standard" and Japan JIS H4100 "Aluminum and Aluminum Alloy Extruded Profiles" and also other criteria, primarily suitable to some special customers or even worldwide sizable building drape wall surface providers in widely known properties, spots buildings as well as international projects It is utilized in the oversight of the task.
Enterprise standards
When the items helped make by the venture, it performs certainly not have national, business or neighborhood standards, corresponding company requirements shall be actually produced as the basis for coordinating creation. The business specifications shall be filed along with the regional technological oversight bureau depending on to the prescribed operations. The high quality as well as technological oversight device is a localized control.
After the market supervision spot checks samples, they must go to the quality and technical supervision bureau where the company is located to read the filing standards to determine whether they are qualified. Manufacturers can know the products are subject to supervision and random inspection at the first time, actively follow up the product inspection process and results in advance, and take corresponding measures. Such as small materials, non-building use profiles, decorative profiles and export profiles, etc.

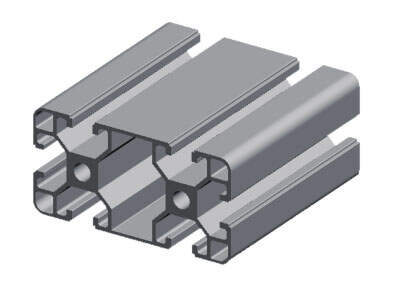

80x40E t slot aluminum profiles
ChuJin Aluminum specializes in producing and selling aluminium profile and accessories, if you need 15x30, 80x40E, 50x100 or other standard aluminum profiles, please feel free to contact us.
